EVA Vet Select II
Sizes 1.0, 1.5 and 2.0. 25 lp/mm theoretical resolution. Made in the USA.

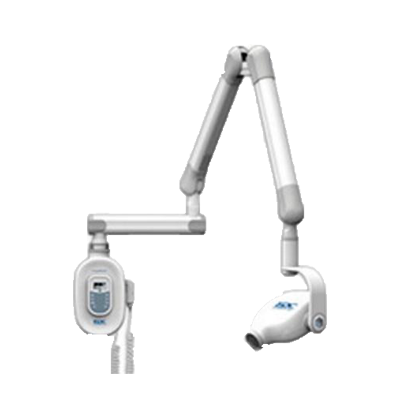

Image-Vet ISDC: the wall-mount dental x-ray found in universities and training centers
Thousands of Image-Vet installations work in universities, major wet labs, veterinary dental training centers and private practices. The ISDC brings DC technology, a zero-drift arm and thirty preset techniques to your dental suite.
Quotes come from an IWV equipment consultant, with trade-in options where they apply.
- Focal spot
- 0.4 mm
- High frequency, 4 to 8 mA
- 55 to 70 kV
- Pre-programmed technique settings
- 30
- Cycles of mechanical and electrical life testing
- 200,000
Overview

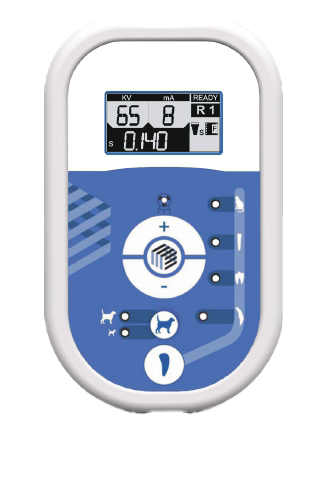

Pick the tooth, the receptor and the patient size from clear icons on the LCD, and the ISDC sets kV and mA for you. Thirty pre-programmed techniques cover every procedure and every receptor, so the first image is the right image.
Power factor correction holds output stable whatever the quality of the building's power. A patented shielding method brings leakage close to zero and cuts the soft radiation that conventional AC machines produce.
The arm moves smoothly and stays where you put it. Choose a 15, 24 or 33 inch extension, or the mobile model if one unit has to serve more than one room.
Best for
- Dedicated dental suites
- Teaching hospitals and training programs
- High-volume dental practices
“The Image-Vet by IWV is an invaluable tool for our Veterinary Technician Program. The machine is simple to use and the radiographs we are able to take are amazing. IWV has been a valuable partner and has provided amazing support in educating our students.”
Why practices choose the Image-Vet ISDC
- Best image first time
- Stable output and automatic technique selection mean fewer retakes and less time under anesthesia.
- Lower dose
- Near-zero leakage and less soft radiation than conventional AC machines.
- Built to last
- Life cycle tested past 200,000 cycles before it reaches your wall.
Specifications
From IWV’s published product information. Ask your consultant for the current specification sheet before you order.
Generator
| Output | High frequency, 55 to 70 kV / 4 to 8 mA |
|---|---|
| Focal spot | 0.4 mm |
| Output stability | Power factor correction for consistent output regardless of input power |
| Shielding | Patented method, leakage close to zero |
| Life testing | Over 200,000 cycles, mechanical and electrical |
Controls
| Display | Bright LCD, readable from any angle |
|---|---|
| Technique selection | Icons for tooth, receptor type and patient size set kV and mA automatically |
| Presets | Thirty pre-programmed technique settings |
Configuration
| Arm | Zero-drift, extension lengths 15 in, 24 in, 33 in |
|---|---|
| Models | Wall mount or mobile |
| Sensors | Seamlessly compatible with EVA Vet digital dental imaging systems |
| Warranty | 24-month limited warranty on parts, US and Canada |
Questions about the Image-Vet ISDC
Who installs the Image-Vet ISDC?
If you ask for help, IWV coordinates installation with an IWV certified and authorized installer. The warranty is void if anyone else does the work. Installation costs, and the removal and disposal of an old system, are paid by the purchaser.

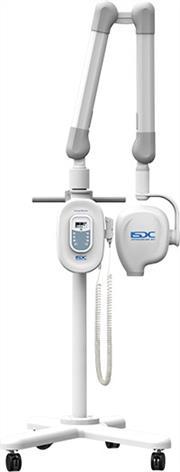

Is there a mobile version?
Yes. The ISDC is available as a wall-mount or a mobile model.
What arm lengths are available?
Three extension arm lengths: 15 inches, 24 inches and 33 inches.
What warranty comes with the ISDC?
A 24-month limited warranty in the US and Canada. IWV supplies replacement parts for manufacturer defects; labor is covered for the first 30 days from delivery. Register within 30 days of receipt.
Does it work with EVA Vet sensors?
Yes. The ISDC is seamlessly compatible with EVA Vet digital dental imaging systems.
Works well with the Image-Vet ISDC
Image-Vet FleXX
4 lb, FDA approved for handheld use, up to 500 exposures per charge.
DMCL Turbo
High-speed, low-speed, scaler, syringe and suction on one quiet mobile cart.
Get a quote on the Image-Vet ISDC
Tell us how your practice works. A consultant will match you with the right system, explain trade-in options and send a quote.
(303) 996-8489- One company sells, installs, trains and supports it
- Trade-in and trade-up incentives on film, CR and older sensors
- Headquartered in Englewood, Colorado
