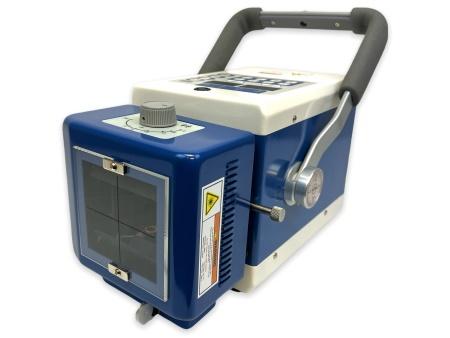

IWV Ultra Light: a 25 lb portable x-ray for equine and mobile practice
Battery powered, 2.4 kW high-frequency output and up to 500 exposures on a charge. The Ultra Light goes where the patient is, and works with IWV DR panels, most quality panels, CR cassettes or film.
Quotes come from an IWV equipment consultant, with trade-in options where they apply.
- Ultra Light model
- 25 lb
- Published output specification
- 100 kV / 40 mA
- High-frequency generator
- 2.4 kW
- Exposures per charge, up to
- 500
Overview
A built-in rechargeable lithium-polymer battery means no outlet hunting in a barn aisle. A bright LED collimator with an integrated dual-laser pointer takes the guesswork out of positioning, and a small focal spot keeps fine detail sharp.
Seven standard APR memory settings and twelve you can customize get the technique right fast. The interface is a flat touch panel with a reversible digital display.
Best for
- Equine and large animal practitioners
- Mobile and ambulatory vets
- A second generator for a busy hospital
Specifications
From IWV’s published product information. Ask your consultant for the current specification sheet before you order.
Generator
| Output | 100 kV / 40 mA |
|---|---|
| Generator | 2.4 kW high frequency |
| Focal spot | Small tube focal spot for fine detail resolution |
| Model | PXR-B40-2.4HF |
Power and handling
| Weight | 25 lb |
|---|---|
| Battery | Built-in rechargeable lithium-polymer, up to 500 exposures per charge |
| Positioning | Bright LED collimator with integrated dual-laser pointer |

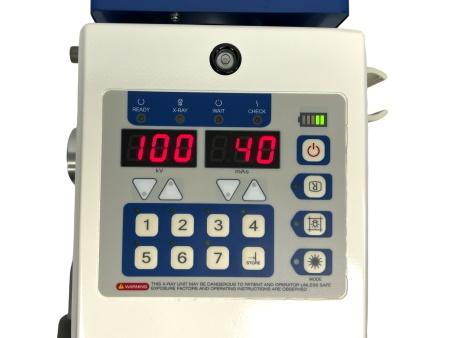

| Interface | Flat touch panel, reversible digital display |
| APR memory | 7 standard, 12 customizable |
Compatibility and contents
| Receptors | IWV DR panels, most higher-quality panels, CR cassettes or film cassettes |
|---|---|
| Included | Exposure hand switch, custom-fitted carrying case, battery charging cord |
| Optional | Mobile stand |
Questions about the Ultra Light Portable
Is the Ultra Light suitable for equine work?
Yes. It is designed for large animal practitioners: 25 lb, battery powered and protected by a custom-fitted carrying case.
How many exposures per charge?
Up to 500 exposures on a single charge of the built-in lithium-polymer battery.
What detectors does it work with?
IWV Digital X-Ray DR panels, most other higher-quality panels, CR cassettes and film cassettes.
Is a stand available?
Yes, a mobile stand is optional.
Works well with the Ultra Light Portable
IWV System X
17x17 cesium DR, 32 kW generator, 4-way float table. Images in seconds on 110 V.
IWV CR eco
16-bit CR, processed images in 30 seconds, works with your current table.
Get a quote on the Ultra Light Portable
Tell us how your practice works. A consultant will match you with the right system, explain trade-in options and send a quote.
